SiC Series CTPU

SiC Series CTPU2017-11-21T15:47:27+00:00

Product logo SiC Disc  SiC Disc Range
  Key Features

Extended temperature range up to 200°C
Higher Energy rating than comparable SiC Ceramics
Higher continuous Power rating

Large variations of different mounting arrangements

Dimensions and electrical values can be modified to customer requirements

Free of charge design service including technical drawing to international standards

Please find here all discriptions as pdf


A major operational risk that can occur with a current transformer (CT) is when the secondary circuit has an open circuit condition whereas the primary circuit is still energized. This could happen during a routine maintenance of the burden or because of damages on leads or contacts. High voltage transients could damage the CT winding which may lead to further destructions.

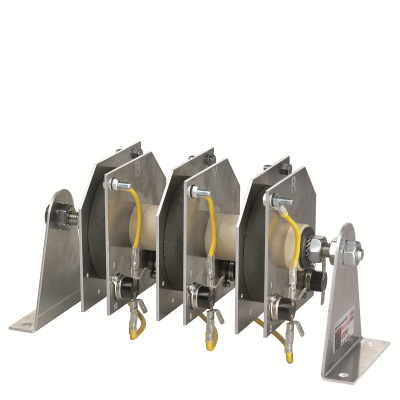

With the HVR Current Transformer Protection Unit (CTPU) you can protect your CT against these operational risks.

  • Current transformer protection for the following applications
  • Protection circuit
  • Metering circuit
  • Personal safety (protection to a level below 1000Vpek

Main specifications

HVR CTPU selection tables Series 8xx

Selection sheet CTPU Range_(General) Tabelle 1 8xx

HVR CTPU selection tables Series 15xx

Selection sheet CTPU Range_(General) Tabelle 2 15xx
Other dimensions and electrical values are available on request

Electrical and physical characteristics CTPU

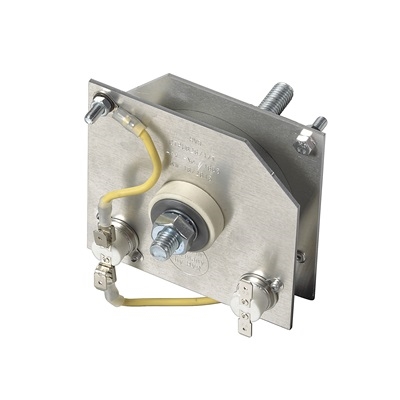

Sample drawing CTPU 8xx series Varistor

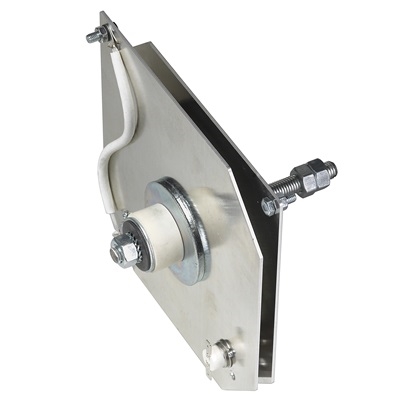

Sample drawing CTPU 150xx series Varistor
