Product logo SiC Disc  SiC Disc Range
  Key Features

Extended temperature range up to 200°C
Higher Energy rating than comparable SiC Ceramics
Higher continuous Power rating

Large variations of different mounting arrangements

Dimensions and electrical values can be modified to customer requirements

Free of charge design service including technical drawing to international standards

Please find here all discriptions as pdf

DOWNLOAD
DOWNLOAD

An exciter in a synchronous generator is used to provide the DC supply to the electromagnetic field winding which is mounted on the rotor of the generator. In order to prevent damage being sustained to excitation systems during shut down, a suitable discharge unit for the stored energy in the coil must be available.

HVR silicon carbide varistors have provided a reliable solution for De-excitation systems.

Depending on the discharge system configuration, HVR units may be switched or permanently connected coil:

  • For discharge currents less than 600A and suitable field and discharge voltages, it is possible to supply a HVR varistor which can be connected directly across the coil continuosly. In these configurations, the HVR varistor have to possess a high degree of non-linearity to prevent demage at operating voltages, whilst being able to clamp transients to a protection level.
  • For large coil systems, it is common to switch in the HVR varistor at the same time as switching out the supply voltage. This may be achieved via a thyristor crowbar or a field breaker. In these applications, the HVR varistor is not connected across the coil under normal operating conditions and as such considerations towards continuous power dissipation in the discs does not have to be made.For these types of applications, discs may be selected with higher current ratings and lower exponent and a lower degree of non-linearity.

Both types are supplied as stacks of 150mm diameter discs, electrically connected in parallel. The number of discs and their thickness depends on the application details.

In the design of a HVR unit for an De-excitation system, the following parameters are nessecary:

  • Required protection voltage
  • Maximum discharge current
  • Energy stored in the field

The required protection voltage is the voltage which the HVR discs limit the system to when the maximum discharge current flows from the coil into the HVR unit.

The maximum current occurs as soon as the discharge resistor is switched in. Under normal discharge conditions, the magnitude of this current is equal to the magnetising current used in the excitation of the field winding.

The discharge energy is the energy stored in the coil which is to be dissipated in the HVR unit.

  • Generators in power supply units such as hydro-electric power plants
  • Very large Coils
  • Big capacitor banks

Main specifications

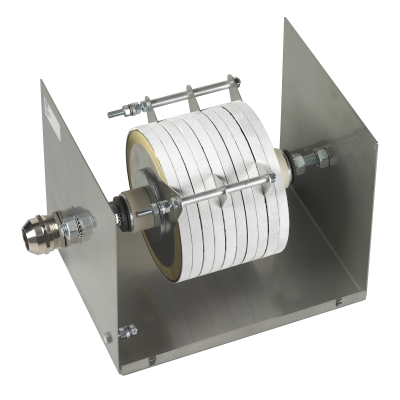

Small example of Generator De-Excitation designs (click to enlarge)

Small example of Generator De-Excitation designs
Electrical and physical characteristics Generator De-Excitation

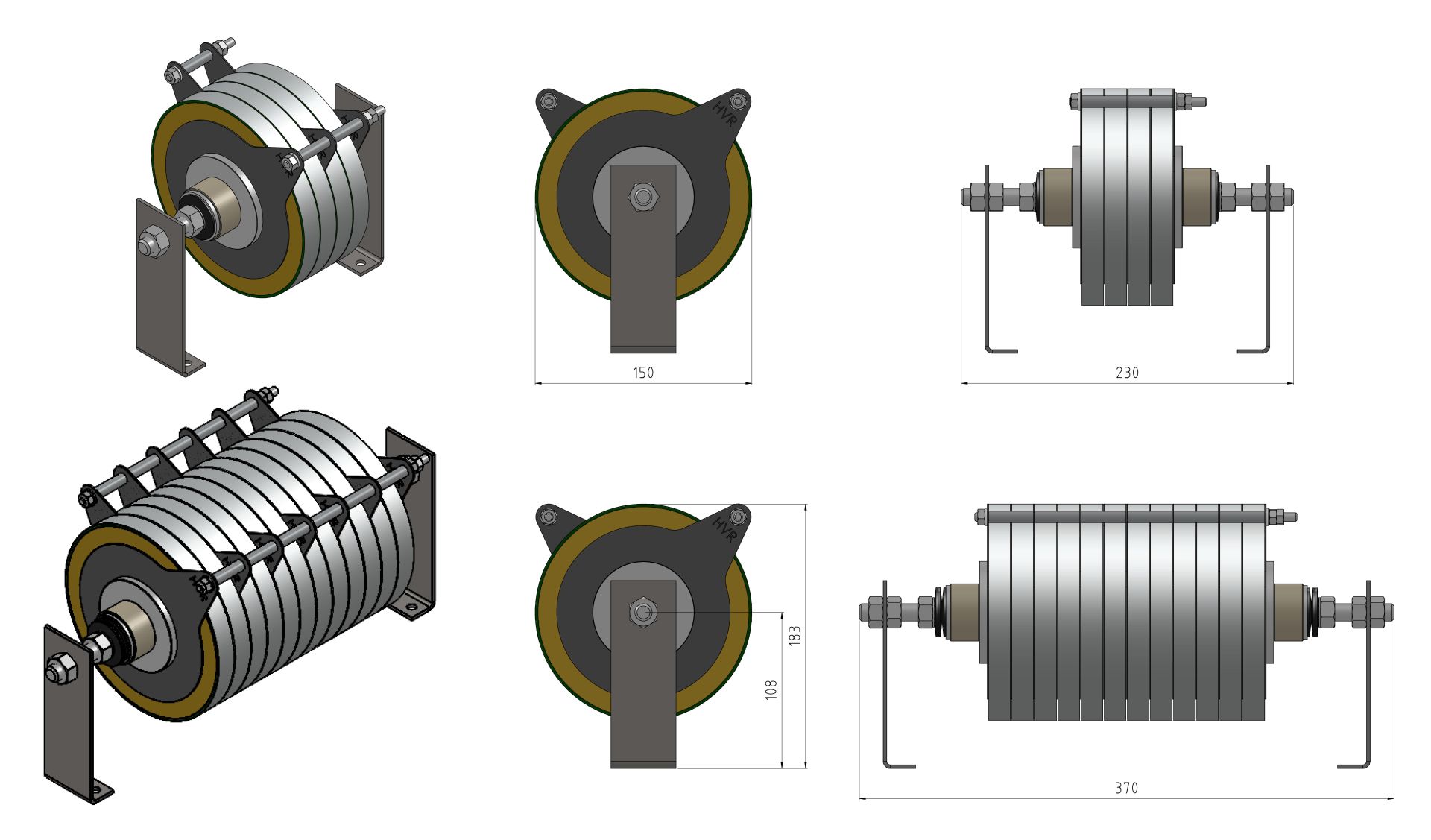

Exsample of drawings for different projects (click to enlarge)

Sample Drawings of Stacks for Generator De-Excitation
