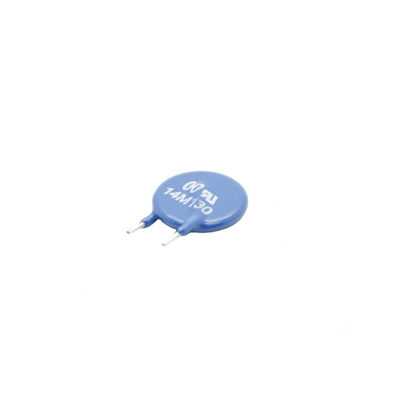

ZnO Series 14 M

//ZnO Series 14 M
ZnO Series 14 M2017-11-16T07:52:37+00:00

Icon ZnO  ZnO (MOV) Range
  Key Features

Wide operating voltage range 25 … 600 Vrms
High surge current ratings up to 4500 A
No derating up to 85 ° C
Excellent protection Level

Wire dimensions and electrical values can be modified to customer requirements
Can be also delivered as taped solution for full automative assembling
Leads can be crimped for best soldering

Free of charge design service including technical drawing to international standards

Please find here all discriptions as pdf

DOWNLOAD
DOWNLOAD

HVR zinc oxide varistors are designed for specific applications and should not be used for purposes not identified in our datasheets and application notes unless otherwise agreed with HVR during the design phase. For applications in line-to-ground circuits based on various international and local standards there are restrictions existing or additional safety measures required.

  • Overvoltage in the mains, caused by lightning, inductive or capacitive coupling
  • Consumption in switch contacts with inductive load
  • Limit overvoltages in transformers, motor, generator windings and magnet coils
  • Protecting machines in B to B and B to C applications

Main specifications
