Product logo SiC Disc  SiC Disc Range
  Key features

Extended temperature range up to 200°C
Higher Energy rating than comparable SiC Ceramics
Higher continuous Power ratin

Large variations of different mounting arrangements

Dimensions and electrical values can be modified to customer requirements

Free of charge design service including technical drawing to international standards

Please find here all discriptions as pdf

DOWNLOAD
DOWNLOAD

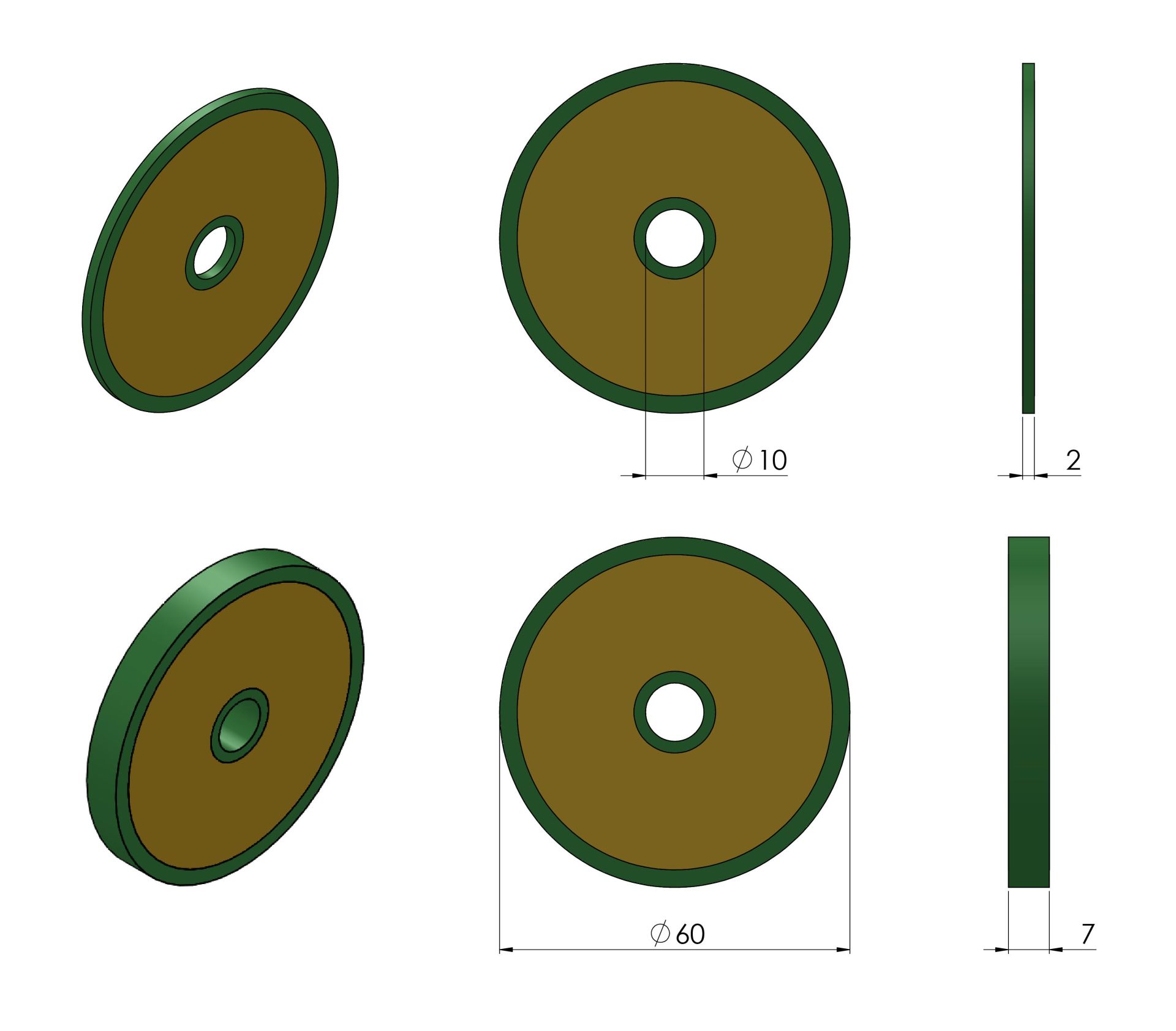

Same as other HVR disc sizes the Series 60 can be assembled with a large variation of contact materials. It can be mounted in stacks with parallel connected flags or with cooling fins to increase the continuous power and reduce the cooling time. Some examples can be seen on the pictures above.
Apart from the standard range we can also offer dimensions and values to customer requirements.

  • Protection in Switchgears
  • Protection for Automation
  • Protection in Railway Application
  • Protection in Generator & Motor Application

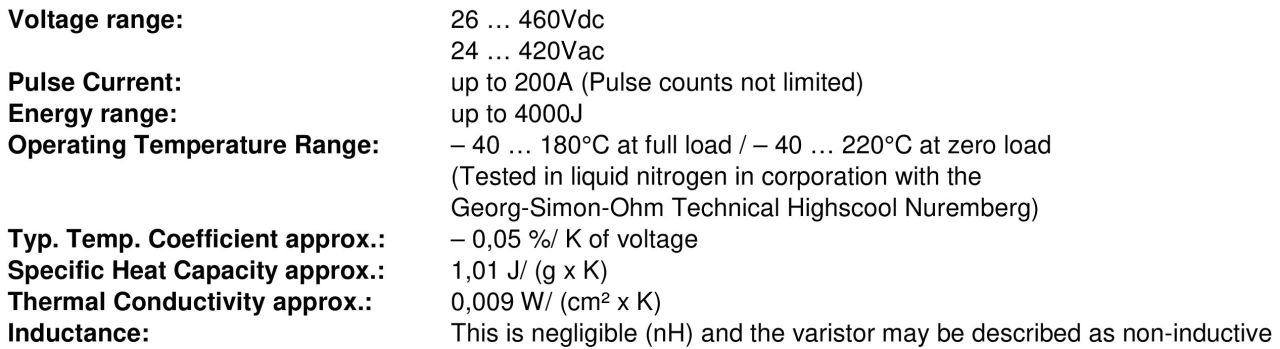

Main specifications
